From wellness to recognition, Micro Optics bring health and 3D sensing to life—powering smartwatches and phones with precision light control for intelligent, connected experiences.

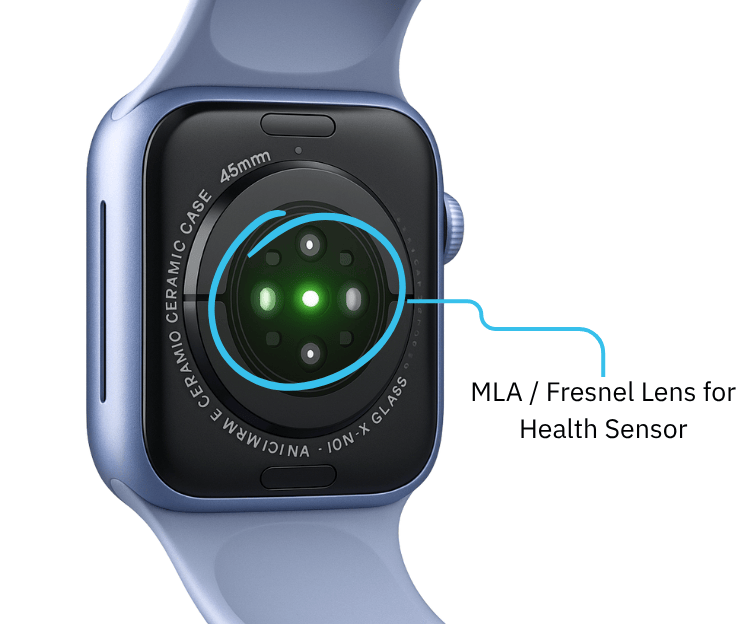

MLA / Fresnel Lens for Health Sensing

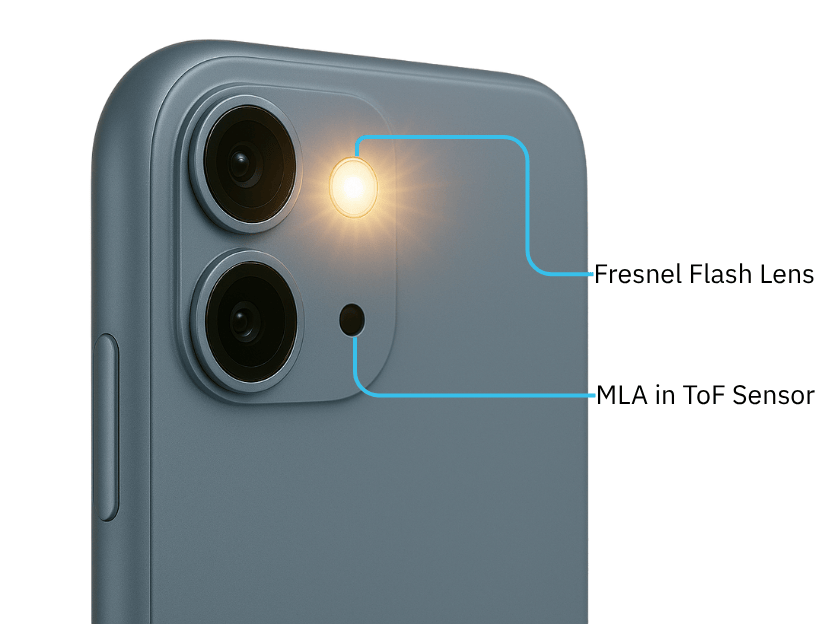

MLA and Fresnel Lens for Depth Sensing and Lighting
Master mold made using 5-Axis diamond turning and replication process using UV epoxy resin.
What is unique about Nanofilm Nanofabrication?
Nanofilm's Nanofabrication combines ODM/OEM micro-optics expertise with a proprietary synchronous 5-axis diamond-turning control, delivering superior angular precision and freeform master molds not feasible with standard methods. The result is tighter tolerances, higher-fidelity replication into polymer tooling, and faster design-to-production for micro optics.
What kind of products you can produce?
Our current project portfolio includes Fresnel Flash Lens, Passive Infrared Lens, Free Form Alvarez Lens, and Micro Lens Array. Customized micro-optics are also available. Reach out to us and today.
What resolution or accuracy level can you achieve?
For injection mould process, we can achieve 0.1μm resolution. For replication process we can achieve resolution higher than 0.1μm.
Do you have any question and want to know more about our services? We will be glad to support you.
