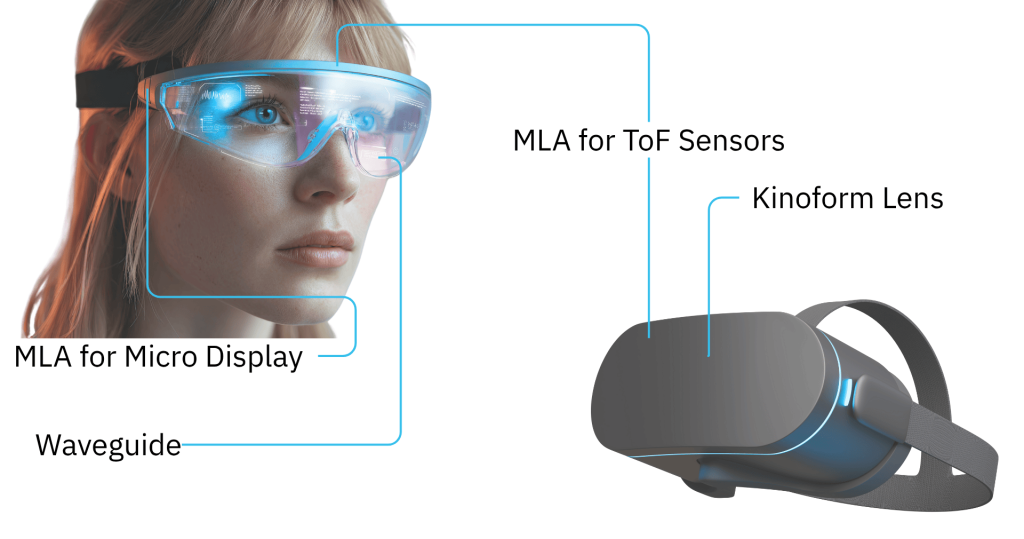

AR/VR/MR glasses rely on micro-optics for performance.
MLA + ToF enable precise 3D sensing; Kinoform lenses in VR glasses provide ultra-thin, color-controlled imaging; and MLAs in AR/MR glasses homogenize and shape light for efficient coupling, wider FoV, and multifocal/light-field experiences. While Reflective Waveguide allows the light to be reflected into human eyes while keeping the vision unobstructed.

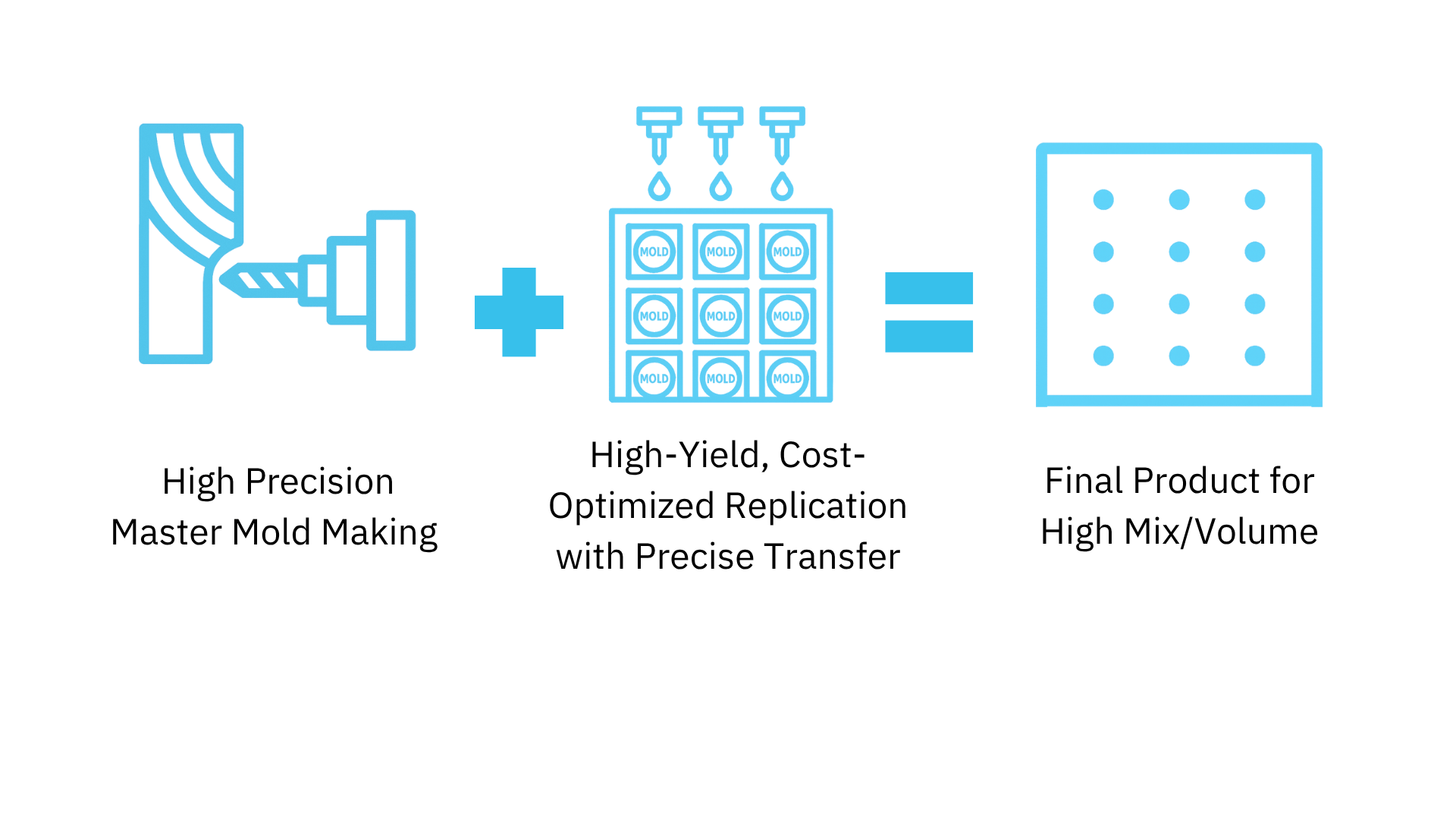

Master mold made using 5-Axis diamond turning and replication process using UV epoxy resin
What is unique about Nanofilm Nanofabrication?
Nanofilm's Nanofabrication combines ODM/OEM micro-optics expertise with a proprietary synchronous 5-axis diamond-turning control, delivering superior angular precision and freeform master molds not feasible with standard methods. The result is tighter tolerances, higher-fidelity replication into polymer tooling, and faster design-to-production for micro optics.
What kind of products you can produce?
We make polymer micro-optics covering Microlens Arrays (MLA), Alvarez lenses, Fresnel lenses, PIR lenses, and custom designs. We also support different substrates, including flexible PET sheets and glass, from DFM to mass production.
What resolution or accuracy level can you achieve?
For injection mould process, we can achieve 0.1μm resolution. For replication process we can achieve resolution better than 0.1μm.
Do you have any question and want to know more about our services? We will be glad to support you.
