Filtered Cathodic Vacuum Arc (FCVA) Technology

At the heart of NTI Nanofilm’s innovation is our Filtered Cathodic Vacuum Arc (FCVA) technology, a fully plasma-based process that creates ultra-dense ta-C coatings with exceptional purity, hardness, and adhesion. Engineered for particle-sensitive applications.

FCVA Enables Highly Adjustable Coatings

FCVA enables highly adjustable coatings for optimal Diamond and Graphite-like properties, enables dense and uniform coatings

  • Curved Magnetic Field Filters Out Impurities for Particle-Free Coatings

    - Particles trapped in the bend enable pure high-energy ion deposition, forming cleaner and denser coatings.

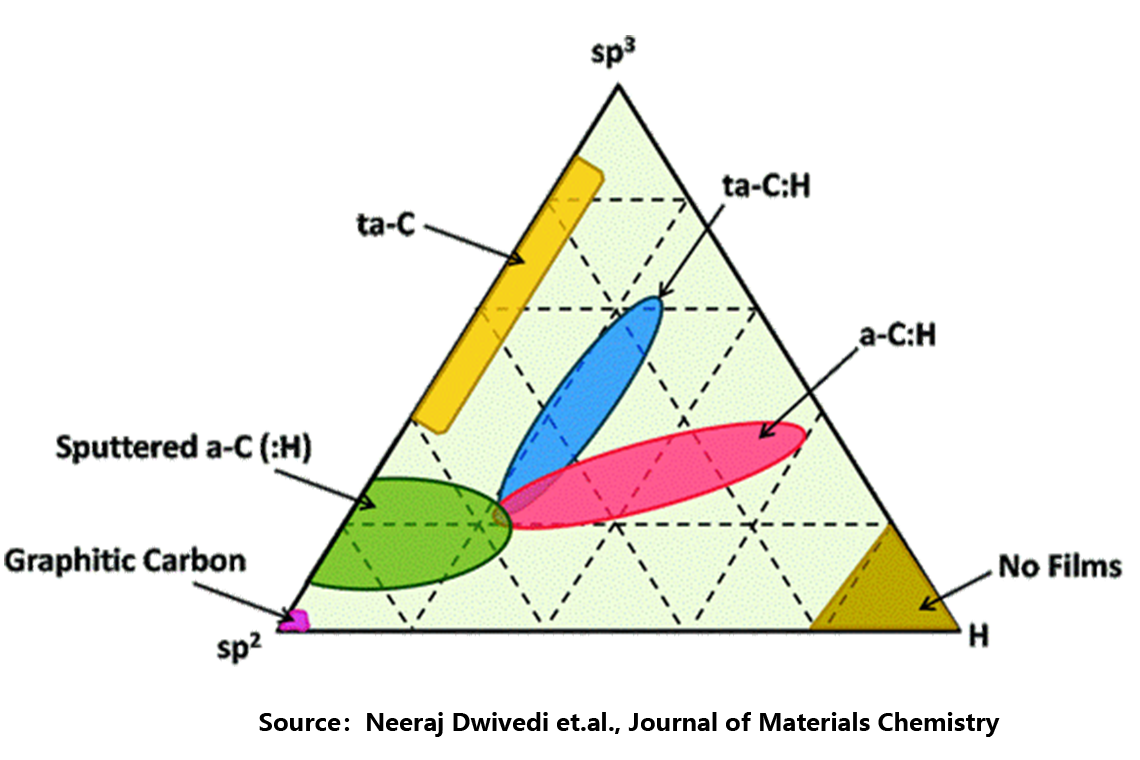

  • Tunable Diamond-like and Graphite-like Structures for Optimal Performance

    - sp³ diamond-like bonds deliver exceptional hardness and wear resistance
    - sp² graphitic bonds enhance conductivity and lubricity for smoother performance

  • High Energy Ions Deliver Superior Density and Adhesion

    - Creates ultra-dense, uniform films with enhanced corrosion resistance
    - Provides uniform and controlled coating thickness across surfaces
    - Ensures strong adhesion for longer coating durability

FCVA is Superior to Other Vacuum Coating Technologies

Key Parameters Filtered Cathodic Vacuum Arc Physical Vapor Deposition Chemical Vapor Deposition
Coating species Ions Atoms Radicals
Adhesion Excellent Fair Fair
Thickness (µm) 0.1 – 15 0.2 – 5 0.1 – 2
Hardness (Hv) ~ 1 500 – 5 500 ~ 2 000 – 3 000 ~ 1 500 – 3 000
Film density (g/cm3) ~ 3.4 ~ 2.2 ~ 2.0
Coating uniformity Software adjustable Hardware dependent Hardware dependent
Target material Solids Solids Gases
Deposition temperature (°C) < 100 150 – 500 600 – 1 100
Substrates Wide range including plastics rubbers alloy metals Mostly conductive metals Mostly conductive metals
